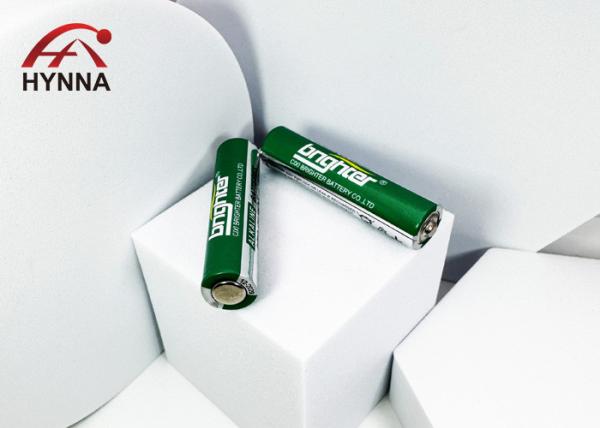

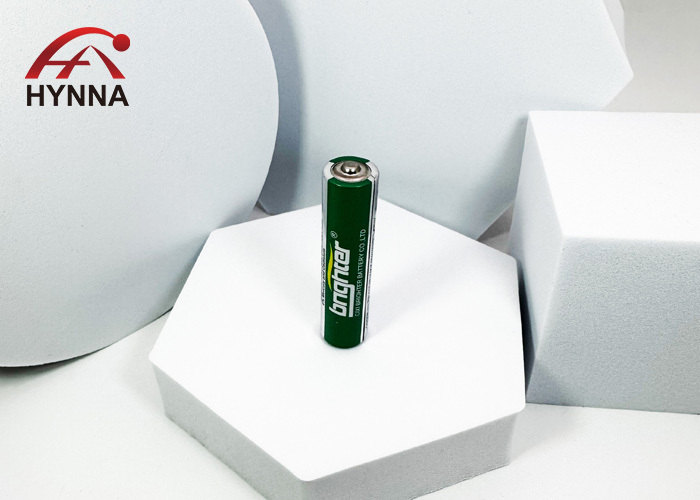

ALKALINE BATTERIES 1.5V LR03 AAA size LR03 MN2400 E92 R03 AM4 1.5V Cell OEM super alkaline battery
AAA Battery LR03 MN2400 E92 R03 AM4 1.5V Cell for RC Toys Non rechargeable battery LR03 dry cell size AAA batteries
Brand: OEM
Model: Alkaline LR03 AAA Batteries
Dimensions: 10.5 mm x 44.5 mm.
Voltage: 1.5V
Shelf Life: 5 years
Chemical Composition: Alkaline.
Other designations: LR03 / AAA / AM-4 / MN2400 // E92.
Application: Digital cameras, Torches, LED lights, Clocks, Alarms, RC Toys, Games Controllers and so on.
Discharger time 8H (10Ω, 24h/d, 0.9V) ; 2.5H (3.9Ω, 24h/d, 0.9V)
AAA Battery LR03 Alkaline Battery 1.5 Volt Long-Lasting Performance , Non Rechargeable Batteries
Alkaline Battery LR03 AAA 1.5V AM4
Battery without mercury or cadmium. Long-life with much longer lifespan than conventional batteries.
For cameras, bicycle lights, radio-controlled toys, torches, etc.
Quick Details for AM4 alkaline battery 1.5volt R03 dry battery
Place of Origin: China (Mainland)
Brand Name: OEM
Model Number: LR03
Nominal Capacity: 1300mAh(10mA, 24h/d, 20°c,e.v.=0.8V)
Nominal Voltage: 1.5V
Battery Type: Zn/MnO2
Certification: CE SGS ROSH MSDS REACH
Application: Remote Control
Jacket: Aluminum Foil
Type: Alkaline battery
Package: Shrink wrap/Blister card
Shelf life: 5 Years
If OEM: YES,welcome customizations
Mercury: no
Size: AAA
Data sheet for AAA size battery MN2400 alkaline battery LR3 lithium battery
| Model | LR03 alkaline battery AAA size E92 battery |
| Diameter | 9.5-10.5 |
| Height | 43.3-44.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Dimensions of lithium primiary Battery LR03 super alkaline battery
Alkalaine battery AAA type primary battery LR03 AAA alkaline battery packing detail
| Type | Blister packing | Shrink packing |
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
Hot sale Alkaline batteries from Hynna
Alkaline 1.5volt super Primary battery
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h |
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h |
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h |
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h |
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min |
| 270Ω, 1h/d, 5.4V | 1150min |
super Alkaline Rechargeable battery 1.5volt primary battery alkaline cell
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times |
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Alkaline super battery USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
Alkaline battery factory
