Dry cell battery 24A LR03 battery AAA 1.5V ALKALINE ALCALINE 1.5Vot AAA Blister card battery
LR03 AAA 1.5V BATTERY Consumer Electronics, Multipurpose Batteries & Power, Single Use Batteries industrial AAA battery LR03 1.5V EN92
LR03 is alkaline primary cell, this battery utilizes a Zinc-Manganese Dioxide (Zn/MnO2) chemical system without added mercury or cadmium.
AAA Battery LR03 MN2400 E92 R03 AM4 1.5V Cell for RC Toys
Battery LR03 (AAA) 1.5V Alkaline battery This compact yet powerful battery is specially designed to provide consistent, long-lasting performance, ideal for devices requiring this form factor. LR03 AAA Alkaline 1.5V Battery Long-Lasting Power battery in size AAA
LR03 AAA alkaline 1.5V
Discover the power of LR03 AAA alkaline 1.5V batteries! With a reliable voltage of 1.5V, these batteries are perfect for a wide range of devices, from remote controls and toys to watches and medical equipment.

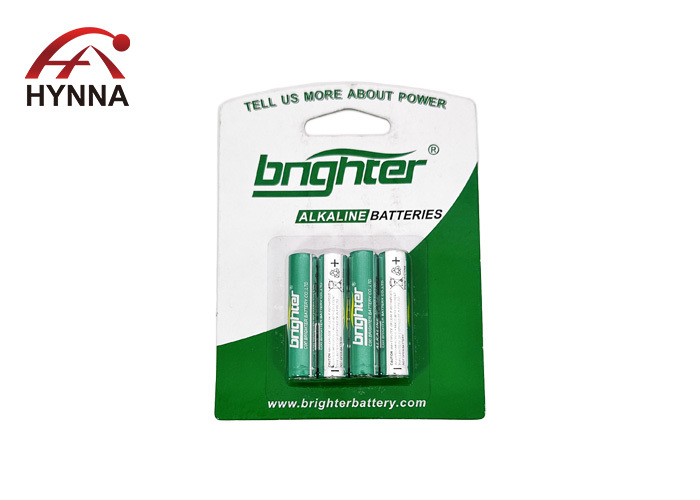

Each blister pack includes two pieces or four pieces, making it convenient and cost-effective.
Type: LR03
Size: AAA
Voltage: 1.5 V
Battery type Alkaline battery
Series Dry cell battery
Diameter 9.5-10.5mm
Height 43.3-44.5mm
Data sheet for AAA batteries LR3 aaa r03 1.5v battery am4 battery
| Model | LR03 size AAA alkaline battery |
| Diameter | 9.5-10.5 |
| Height | 43.3-44.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Dimensions of lithium Battery LR03 1.5volt battery
LR03 AAA battery 1.5V Alkalaine battery packing detail
| Type | Blister packing | Shrink packing |
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
Hot sale Alkaline batteries from Hynna
Alkaline Primary battery size AAA battery AA battery C battery D battery 9V battery 9volt alkaline battery
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h |
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h |
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h |
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h |
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min |
| 270Ω, 1h/d, 5.4V | 1150min |
1.5V lithium Rechargeable battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times |
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
